Simple 2D Shadows Extended XNA Tutorial



You can download the source code with lots of comments at the bottom of this tutorial.

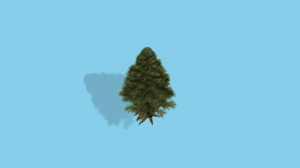

2dshadowssimple1

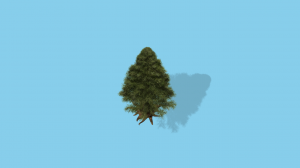

2dshadowssimple21

  public class Game1 : Microsoft.Xna.Framework.Game
    {
        GraphicsDeviceManager graphics;
        SpriteBatch spriteBatch;
        private Texture2D canopy;
        private Texture2D trunk;
        private Rectangle canopyRect;
        private byte shadowAlpha;
        private Color color;
        private int shadowOffsetX;
        private int shadowOffsetY;
        private float shadowRotation;
        private bool sunCycle = false;

        public Game1()
        {
            graphics = new GraphicsDeviceManager(this);
            Content.RootDirectory = "Content";
        }

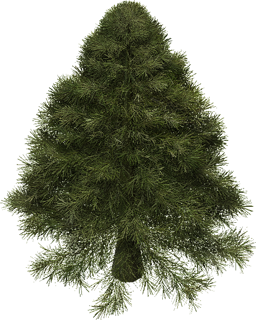

canopy145

trunk145


 protected override void Initialize()
        {
            //Set screen dimensions
            graphics.PreferredBackBufferWidth = 1280;
            graphics.PreferredBackBufferHeight = 720;
            graphics.IsFullScreen = false;
            graphics.ApplyChanges();
            Window.Title = "Simple 2D Shadows";


            //Set Shadow Start values.  These variables are used in the second spritebatch.draw in order to make our shadow.
            shadowAlpha = 40; // set transparency level, Adjust this depending on how dark your background is
            //I use the color variable to define the color of our canopy texture in the second draw of the canopy texture.
            //Using overload number 8 gives us color(byte r, byte g, byte b, byte a)
            //Remember a byte is 0 to 255. These values represent Red, Green, Blue and Alpha(transparency)
            //Setting r,g,b to 0 makes out texture black and then we can play with the alpha level to determine how transparent we
            //want our texture.  Make it darker for a darker background or adjust it based on game design.
            color = new Color(0, 0, 0, shadowAlpha);
            shadowOffsetX = 0; // Shadow X Position offset, Use this to fine tune shadow position
            shadowOffsetY = 20; // Shadow y position offset, Use this to fine tune shadow position
            shadowRotation = -1f; //Shadow rotation starting position.  Use this to rotate the texture based upon sun position.

            base.Initialize();
        }



 protected override void LoadContent()
        {
            // Create a new SpriteBatch, which can be used to draw textures.
            spriteBatch = new SpriteBatch(GraphicsDevice);

            //Load canopy and trunk
            canopy = Content.Load(@"Canopy145");
            trunk = Content.Load(@"Trunk145");
            //create rectangle for canopy, sized to width and height of canopy texture
            canopyRect = new Rectangle(500, 200, canopy.Width, canopy.Height);

            // TODO: use this.Content to load your game content here
        }



  protected override void Update(GameTime gameTime)
        {
            // Allows the game to exit
            if (GamePad.GetState(PlayerIndex.One).Buttons.Back == ButtonState.Pressed)
                this.Exit();

            //Check if user hits spacebar and set sunCycle to true to start sun cycle
            if (Keyboard.GetState().IsKeyDown(Keys.Space) && sunCycle == false)
            {
                sunCycle = true;
            }

            //if suncycle is true (ie. you hit space bar), increment shadowRotation to rotate shadow texture
            if (sunCycle)
            {
                shadowRotation += .005f;

                if (shadowRotation >= 1f)  //stop shadowRotation when it is greater than 1.
                {
                    sunCycle = false;
                }
            }

            base.Update(gameTime);
        }






 protected override void Draw(GameTime gameTime)
        {
            GraphicsDevice.Clear(Color.SkyBlue);

            spriteBatch.Begin(SpriteBlendMode.AlphaBlend, SpriteSortMode.BackToFront, SaveStateMode.None);

                        spriteBatch.Draw(canopy,
                           canopyRect,
                           null,
                           Color.White,
                           0f,
                           new Vector2(0f, 0f),
                           SpriteEffects.None, 0.2f);

            spriteBatch.Draw(canopy,
                             new Vector2(canopyRect.Center.X + shadowOffsetX,
                             canopyRect.Bottom - shadowOffsetY),
                             null,
                             color,
                             shadowRotation,
                             new Vector2(canopy.Width / 2, canopy.Height),
                             1f,
                             SpriteEffects.None, 0.5f);

            spriteBatch.Draw(trunk,
                            new Vector2(canopyRect.Center.X, canopyRect.Center.Y),
                            null,
                            Color.White,
                            0f,
                            new Vector2(trunk.Width / 2, trunk.Height / 2 - 25),
                            1f,
                            SpriteEffects.None,
                            0.5f);

            spriteBatch.End();

            base.Draw(gameTime);
        }




Download 2D Shadows Extended
